HY-1069 Tigris Metal Mesh Fabrics

Material: Stainless Steel
Warp Diameter: 3mm
Warp Pitch: 10mm
Weft Diameter: 1.8mm×3
Weft Pitch: 80mm
Weight: 6.5kgs/m2
Opening Area: 65.3%
Mesh Thickness: 6.6mm
Surface Treatment: clean &free oil
Max Width: 4m
Max Length: 8m

Tigris Metal Mesh Fabrics-1

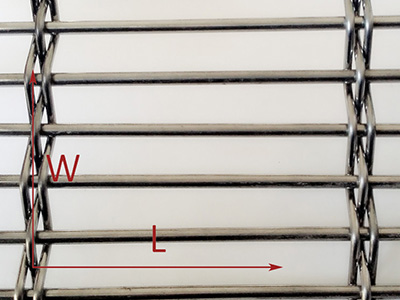

Tigris Metal Mesh Fabrics-2

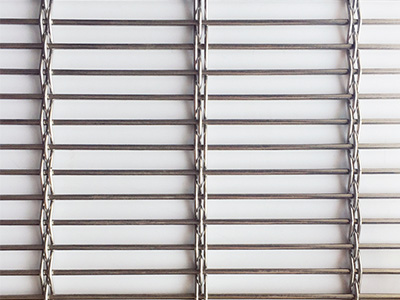

Tigris Metal Mesh Fabrics-3

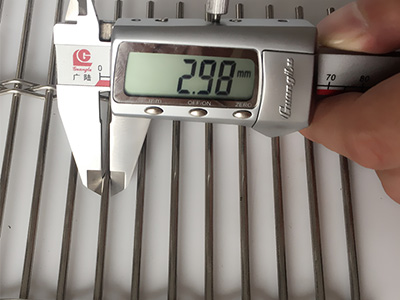

Tigris Metal Mesh Fabrics-4
