HY-1084 Parking Garage Mesh

Material: Stainless Steel
Warp Diameter: 2mm
Weft Diameter: 3mm
Warp Pitch: 12.7mm
Weft Pitch: 17.5mm
Weight:5.26kgs/m2
Opening Area: 43%
Mesh Thickness: 6mm
Surface Treatment: clean &free oil
Max Width: 4m
Max Length: 15m

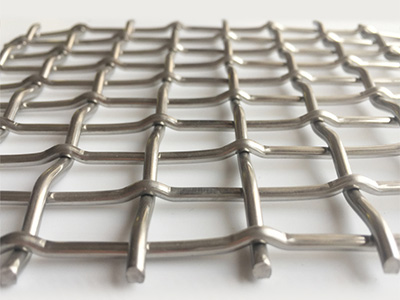

Parking Garage Mesh-1

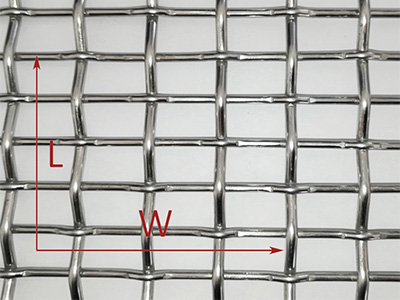

Parking Garage Mesh-2

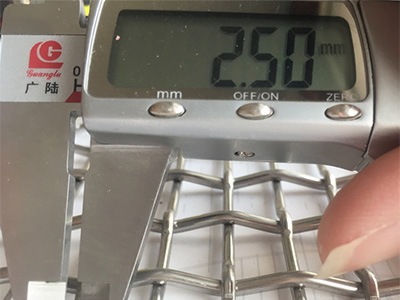

Parking Garage Mesh-3

Parking Garage Mesh-4
