HY-1125 Architectural Wire Mesh

Material: Aluminum
Warp Diameter: 1.5mm
Weft Pitch: 17.5mm
Weft Diameter: 2mm
Warp Pitch: 4mm
Weight:2.5kgs/m2
Opening Area: 45.7%
Mesh Thickness: 3mm
Surface Treatment: anodized
Max Width: 1.2m
Max Length: 3m

Architectural Wire Mesh-1

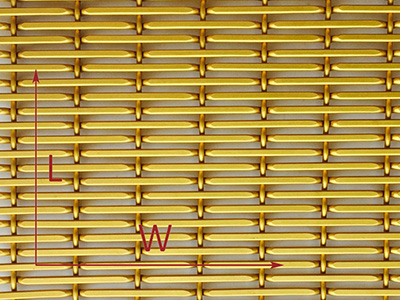

Architectural Wire Mesh-2

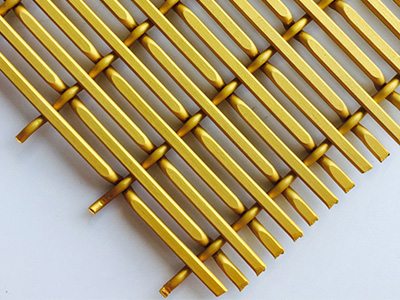

Architectural Wire Mesh-3
